Multipole connector

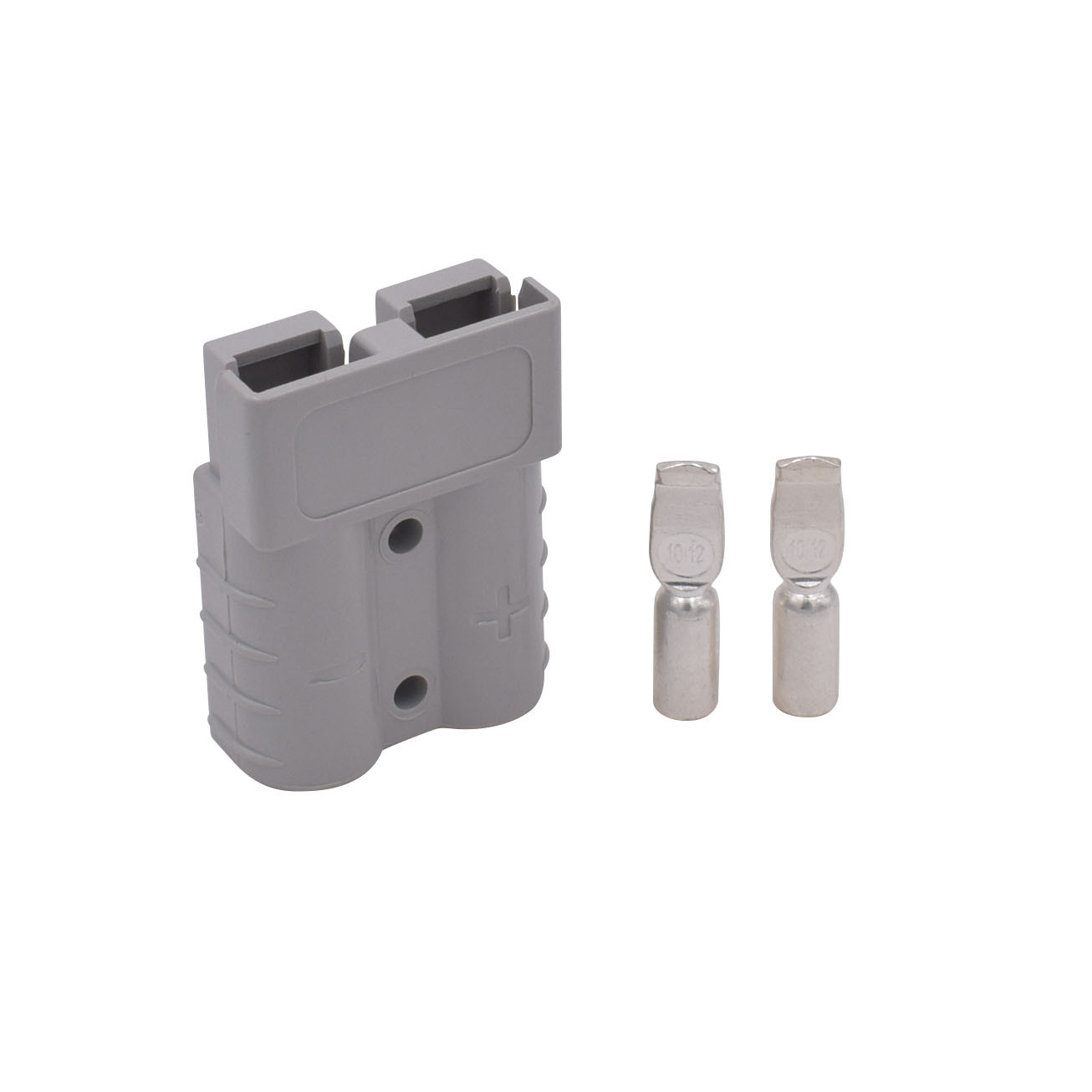

Multipole Connector CHJ50

The innovative muptipole connectors provide cost-effective reliability, design flexibility and safety for your products' manufacture, installation and maintenance.
KNT's 2 pole connector is available with a 50 amp rating, 600 Volts continuous AC or DC operation. There are CHJ connectors for many applications and wire sizes, #6 to #16 AWG (13.3 to 1.3 mm²). Mechanical keys ensure connectors will only mate with connectors of the same color. Different color housings are selected to identify voltages, thus preventing mismatching of the power supply system.



  • Product Detail

Features:

• Double powerpoles design

• The housing is made of PC high temperateure material

• A variety of colors design, material is UL 94V-0

• Contact Barrel Wire Size 6-12AWG

• Rated current 50A

• Temperature Range -20℃-105℃

• Replace APP part number SB50

• Independent innovation,

independent research and development to provide customers with the best quality, the most competitive products, for the power connection to create unlimited possibilities

Application:

This series of products meets strict UL, CUL certification, which can be used safety in logistics communication. Power-driven tools, UPS systems Electric vehicles. medical equipment AC/DC power etc. of widely industry and the most area around world.

Technical Parameters:

Rated current  (Amperes)

50A

Voltage Rating AC/DC

600V

Contact Barrel Wire Size (AWG)

6~12AWG

Contact material

Copper Plate with silver

Insulation material

PC

Flammability

UL94 V-0

Life
  1. Without load (Contact/Disconnect Cycles)
  2. With Load (Hot Plug 250 Cycles&120V)

To 10,000

40A

average Contact Resistance(micro-ohms)

<500μΩ

Insulation Resistance

5000MΩ

average. Connectiondisconnect(N)

55N

Connector holding force (Ibf)

250N Min

Temperature Range

-20°C~105°C

Dielectric Withstanding Voltage

2200 Volts AC
